◆ 通過強力的攪拌形態：攪拌、混合、分散使物料在較短時間內達到要求。
◆ 達到產品要求的物料，通過料筒底部的氣動閥用輸送泵將物料從筒內排出，可直接灌裝到容器內。
◆ 攪拌器在料筒內壁間有刮料結構，可使較稠的物料通過刮板不粘結在筒壁上。
◆ 使用水性物料時，更換顏色及產品時，沖洗簡單。
◆ 采用主機和鋼平臺的組合結構，可一次性安裝到位，方便生產，操作簡單。
◆ 主機功率，配備合理，可適應多種稠(厚)漿型產品。
◆ Powerful mixing and dispersing capability to make material meet demand in short time.
◆ Finished material can be packed into container directly via pneumatic valve and transmission pump at the bottom of tank.

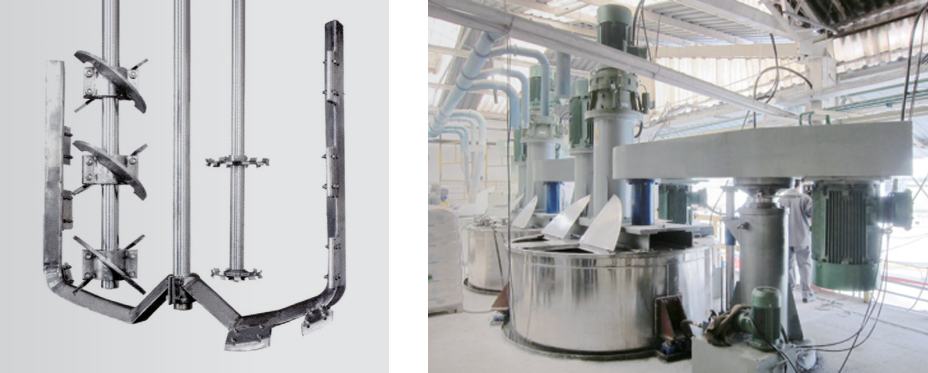

◆ There is material collecting device on mixer inside the tank to make tank clear,no material sticking inside the tank.
◆ Easy cleaning when change color and products also for water based material.
◆ Easy installation for combination of main unit and steel platform. Also easy production and operation.
◆ Various main unit power for different viscosity paste material.
| 規格Type | CJ1M3 | CJ1.5M3 | CJ2M3 | CJ2.5M3 | CJ3M3 | CJ4M3 | CJ5M3 |
料缸容積 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 |
分散功率 | 30-37 | 45-55 | 55-75 | 75-90 | 75-90 | 90-110 | 110-132 |
分散軸轉速 | 1500 | 1500 | 1500 | 1200 | 1200 | 1000 | 1000 |
錨式攪拌功率 | 11 | 15 | 18.5 | 22 | 22 | 22 | 22 |
錨式攪拌轉速 | 30 | 20 | 20 | 20 | 20 | 20 | 20 |
螺旋攪拌功率 | 7.5 | 11 | 15 | 15 | 18.5 | 22 | 22 |
螺旋攪拌轉速 | 170 | 170 | 170 | 170 | 170 | 170 | 170 |
