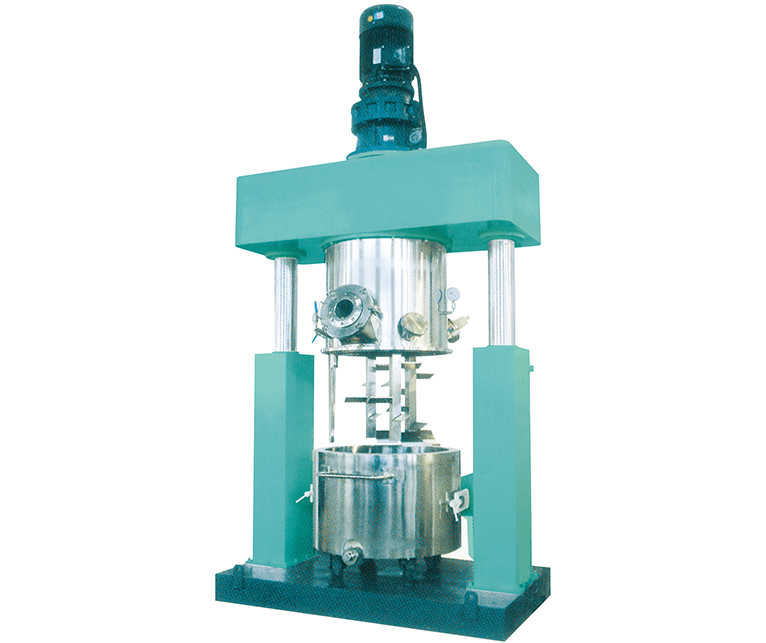

通惠行星攪拌槳葉在繞釜體自轉和公轉，使物料在釜體內作復雜的運動。廣泛應用于高粘度、膏體狀物料的混煉、攪拌、硫化、分散、重新聚合等工藝過程。我司產品具有攪拌均勻、無死角、出料方便等優點。
通惠行星攪拌機主要適用于生產：硅酮密封膠、聚氨酯密封膠、機械密封膠、液體硅膠、RTV、電子膠、油墨、顏料、染料、電子漿料、樹脂、塑料、牙膏、化妝品等行業。使用粘度范圍10,000cps-8,000,000cps左右。
Tonghui planetary mixers blades rotate the same time make revolution movement, so material will be complex movement. They are widely used in high viscosity, cream type material mixing, vulcanization, dispersing, polymerization processing. Our mixers have high performance & easy discharging without mixing blind spot.
Tonghui planetary mixers are widely used in industries: silicone sealant, PU sealant, machinery sealant, liquid silicone, RTV, Electronic sealant, ink, pigment, dye, electronic paste, resin, plastic, tooth paste etc. Viscosity range from 10,000cps~8,000,000cps.
| 型號 Type | XJB-5 | XJB-300 | XJB-500 | XJB-1000 | XJB-2000 |
缸體容積 | 5 | 300 | 500 | 1000 | 2000 |
投料容積 | 3 | 180 | 300 | 600 | 1200 |
電機功率 | 1.1~1.5 | 11~18.5 | 18.5~37 | 37~55 | 45~75 |
公轉轉速 | 0-60 | 0-60 | 0-50 | 0-40 | 0-40 |
自轉轉速 | 0-130 | 0-85 | 0-70 | 0-60 | 0-60 |
真空度 | -0.098 | -0.098 | -0.098 | -0.098 | -0.098 |
